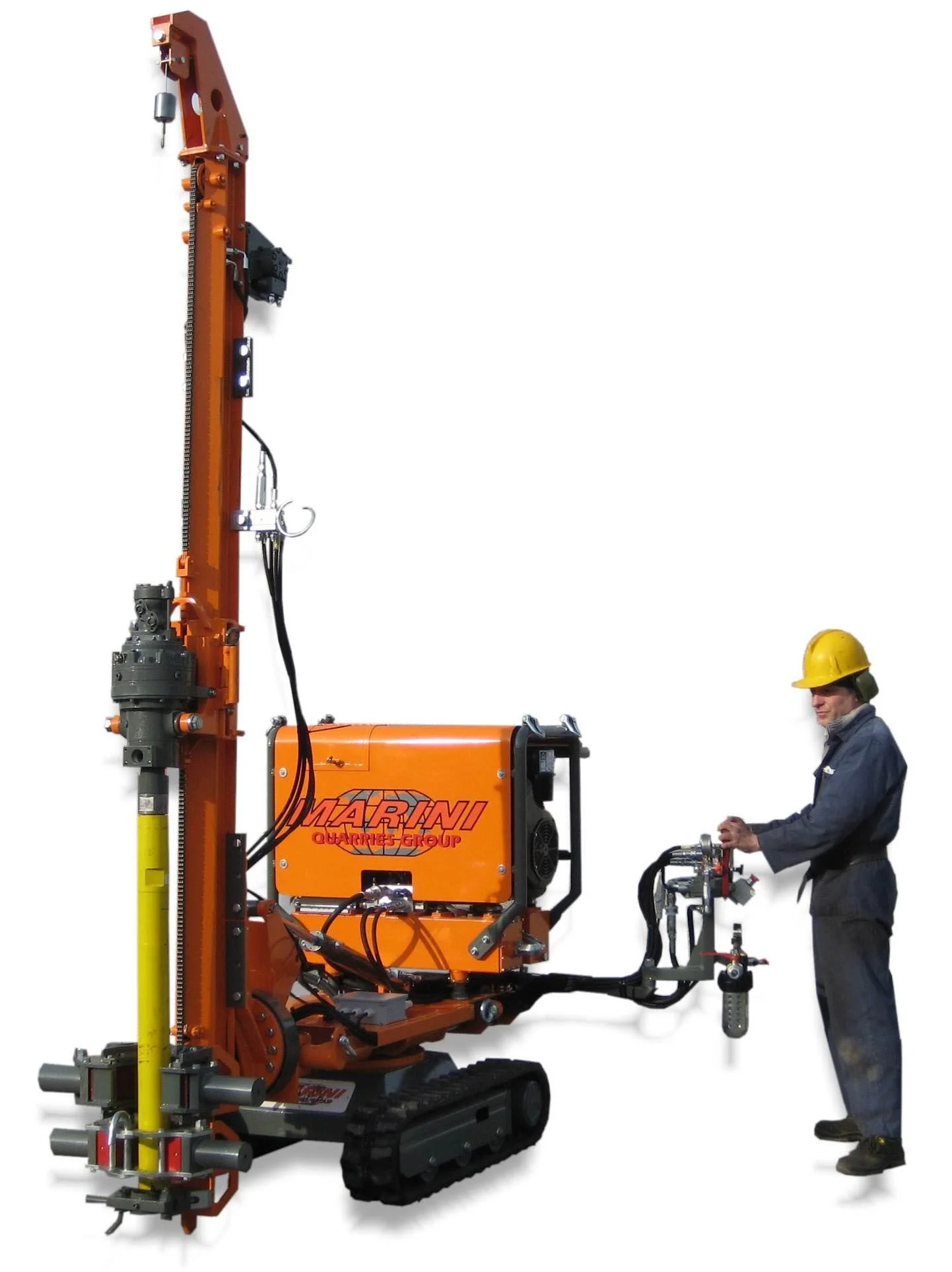

MR - C 10

The MR - C 10 hydraulic manual drilling rig is designed for horizontal, vertical or inclined holes. The self-propelled unit with rubber tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 17 Kw

    Retract Force: 1500 daN

    Max Clamp Passage: 188 mm

    Weight: 1300 Kg

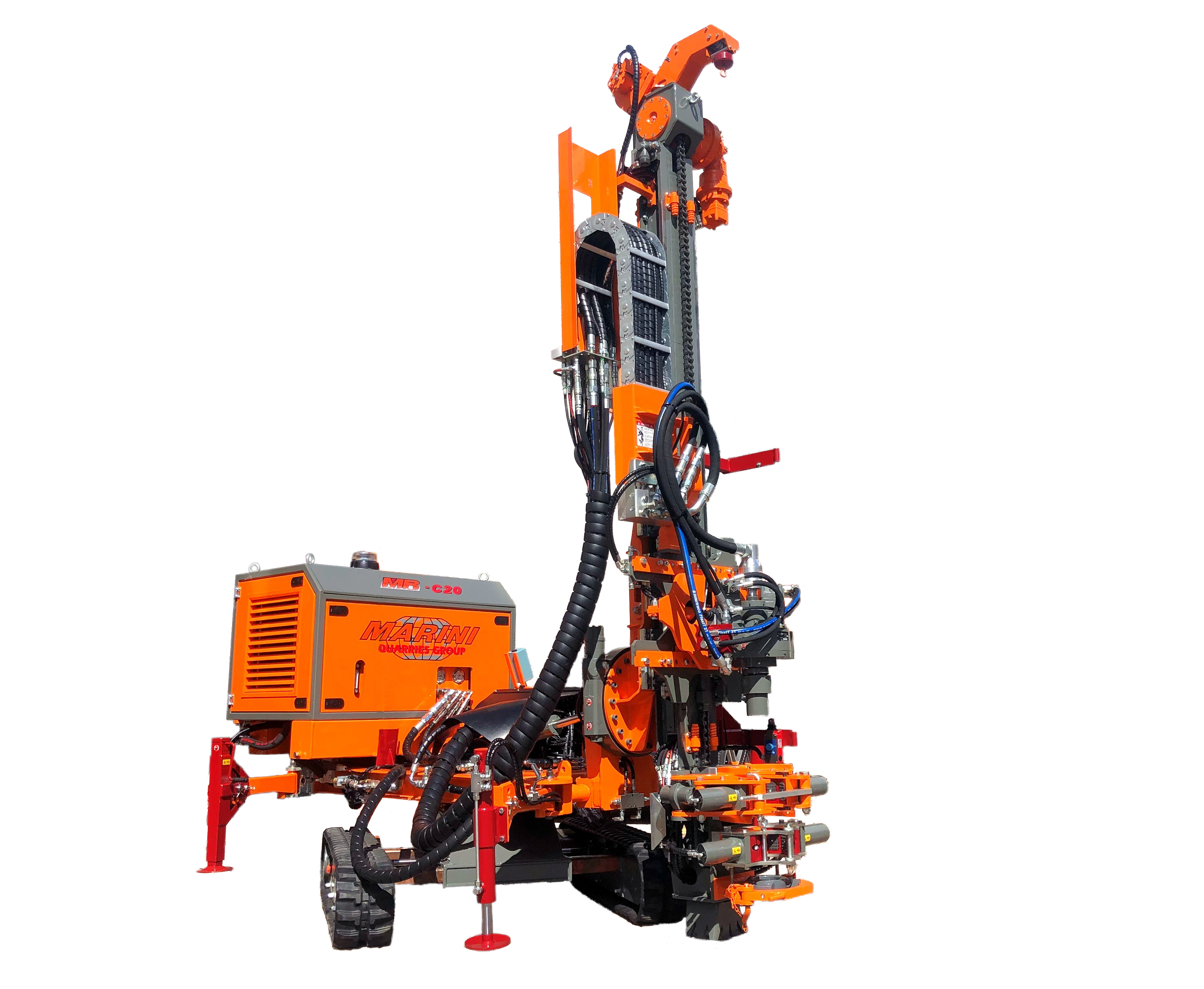

MR - C 20P

MR – C 20 Remote controlled mobile drilling rig suited to execute vertical, horizontal or inclined holes equipped with variable width rubber tracks, a 44 hp diesel or electric engine with removable hydraulic power pack option. Completely removable in parts and easily Helicopter-transportable despite the power provided from this rig.

  • Engine Power: 33 KW

    Retract force: 3500 daN

    Max Clamp Passage: 230 mm

    Weight: 3200 - 3500 Kg

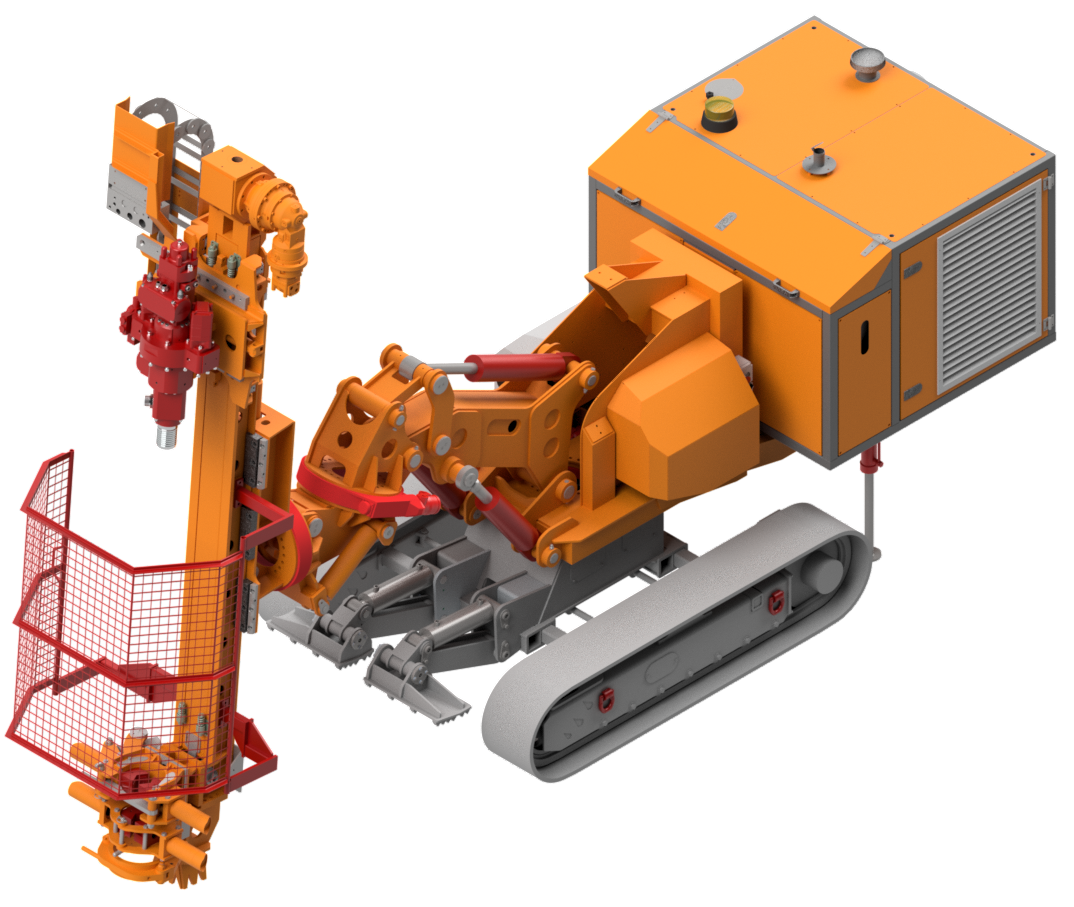

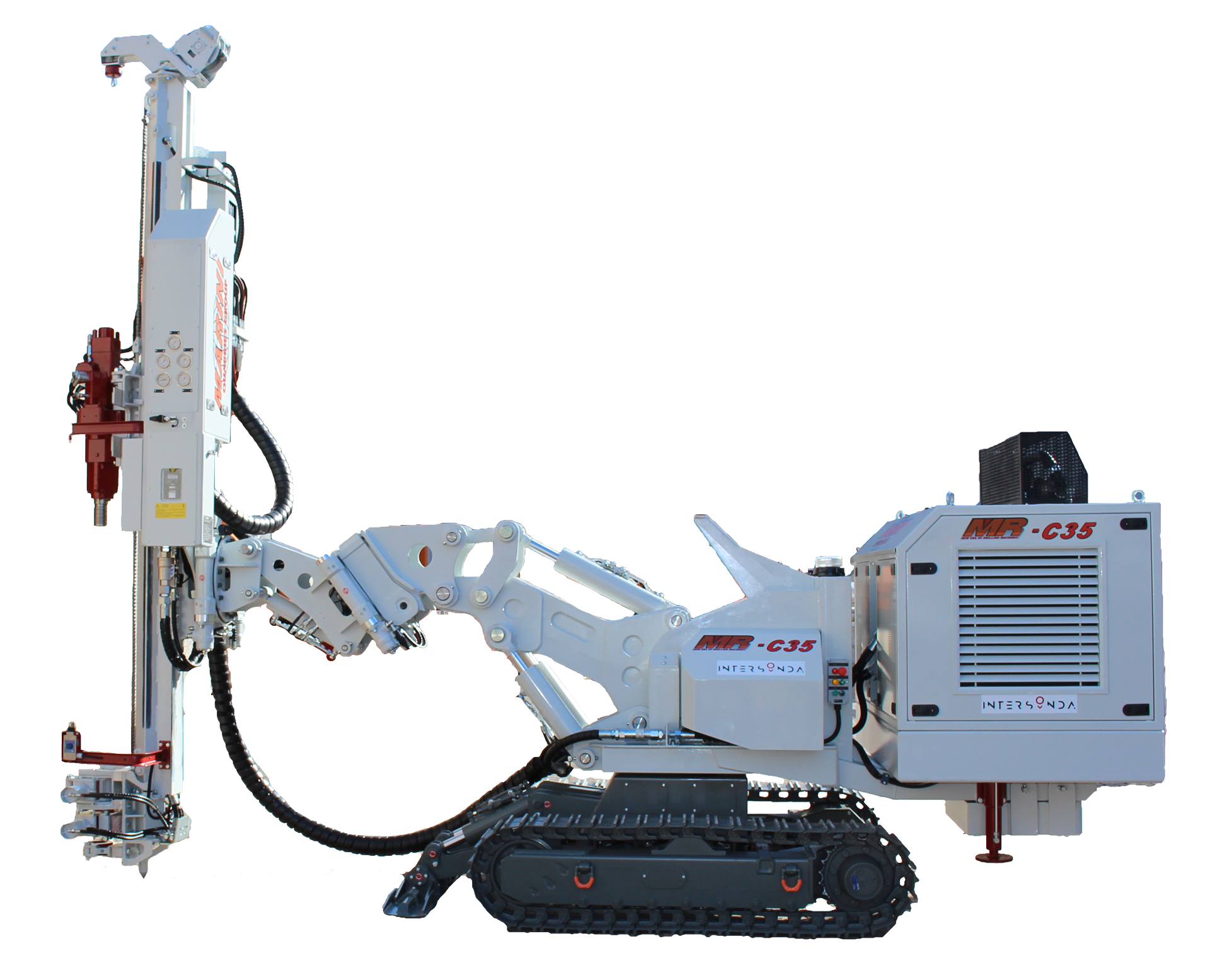

MR - C 35A

The MR-C 35A radio-controlled hydraulic drilling rig, designed with single arm and "mast release" system for self-propelled applications , allows horizontal, vertical or inclined holes to be drilled in any direction. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 41 - 55 Kw

    Retract Force: 2500 daN

    Max Clamp Passage: 188 mm

    Weight: 6000 Kg

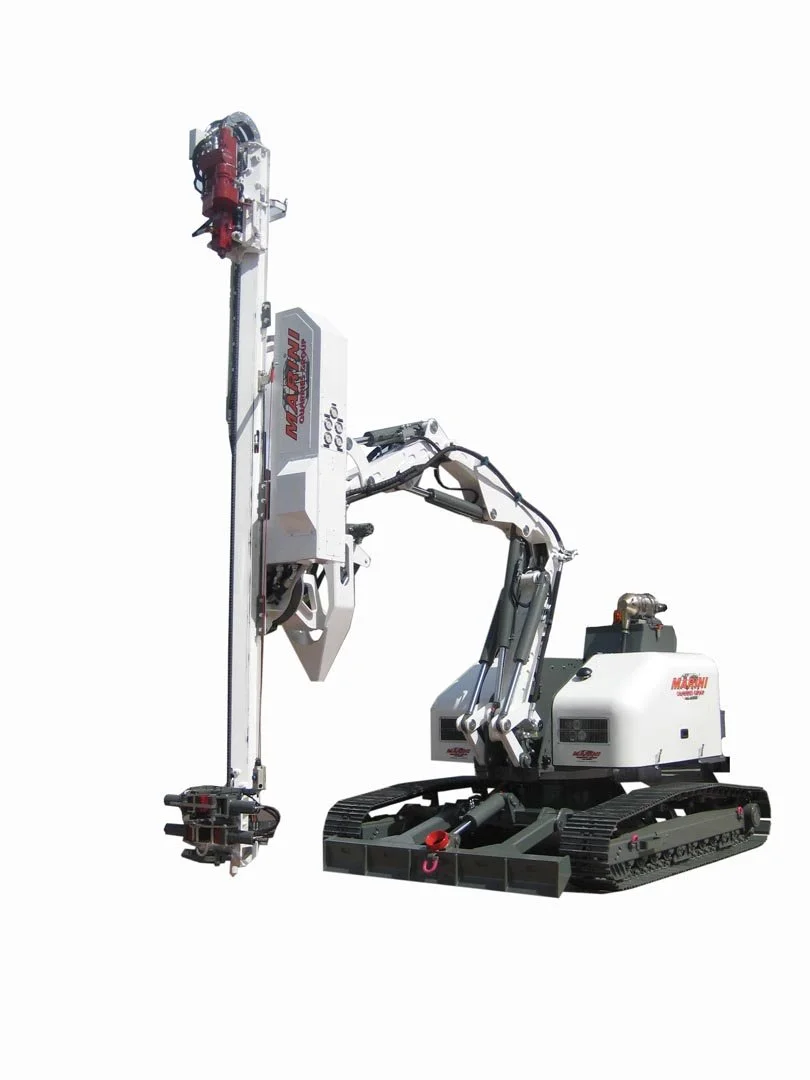

MR - C 80

The MR-C 80 radio-controlled hydraulic drilling rig, designed with triple section arm, allows horizontal, vertical, inclined and vaulted holes to be made with extremely comfort. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 85 Kw

    Retract Force: 2500 daN

    Max Clamp Passage: 188 mm

    Weight: 9000 Kg

MR - C 15

The MR - C 15 hydraulic manual drilling rig is designed for horizontal, vertical or inclined holes. The self-propelled unit with rubber tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 17 Kw

    Retract Force: 2500 daN

    Max Clamp Passage: 188 mm

    Weight: 1500 Kg

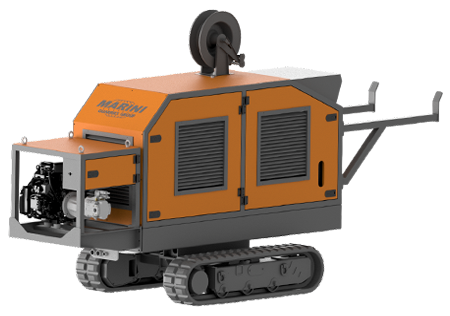

MR - C 30

MR-C 30 Radio-controlled mobile drilling rig for the execution of micropiles, anchors and ground consolidation in difficult to access construction sites. Self-propelled structure equipped with variable rubber tracks and driven by a separate hydraulic power pack with a 45/75 HP diesel or electric motor with an additional petrol engine for movement of the rig.

  • Engine Power: 33 - 55 Kw

    Retract Force: 3500 daN

    Max Clamp Passage: 310 mm

    Weight: 2700 - 3200 Kg + 1700 - 2400 Kg

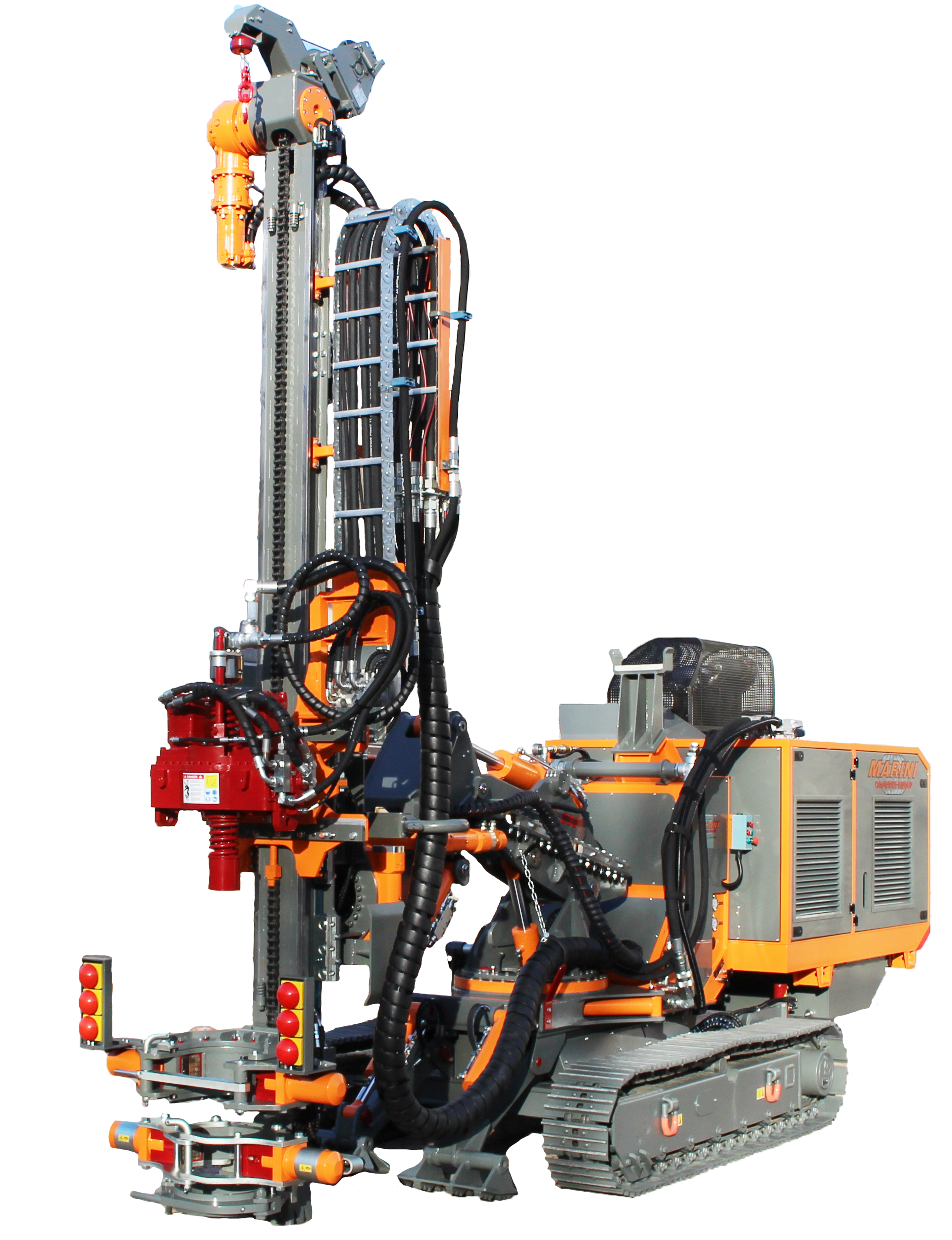

MR - C 50

The MR-C 50 radio-controlled hydraulic drilling rig, designed with single telescopic section arm and removable power-pack, allows horizontal, vertical or inclined holes to be drilled in any direction with considerable power. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 85 - 95 Kw

    Retract Force: 5000 daN

    Max Clamp Passage: 310 mm

    Weight: 7500 kg

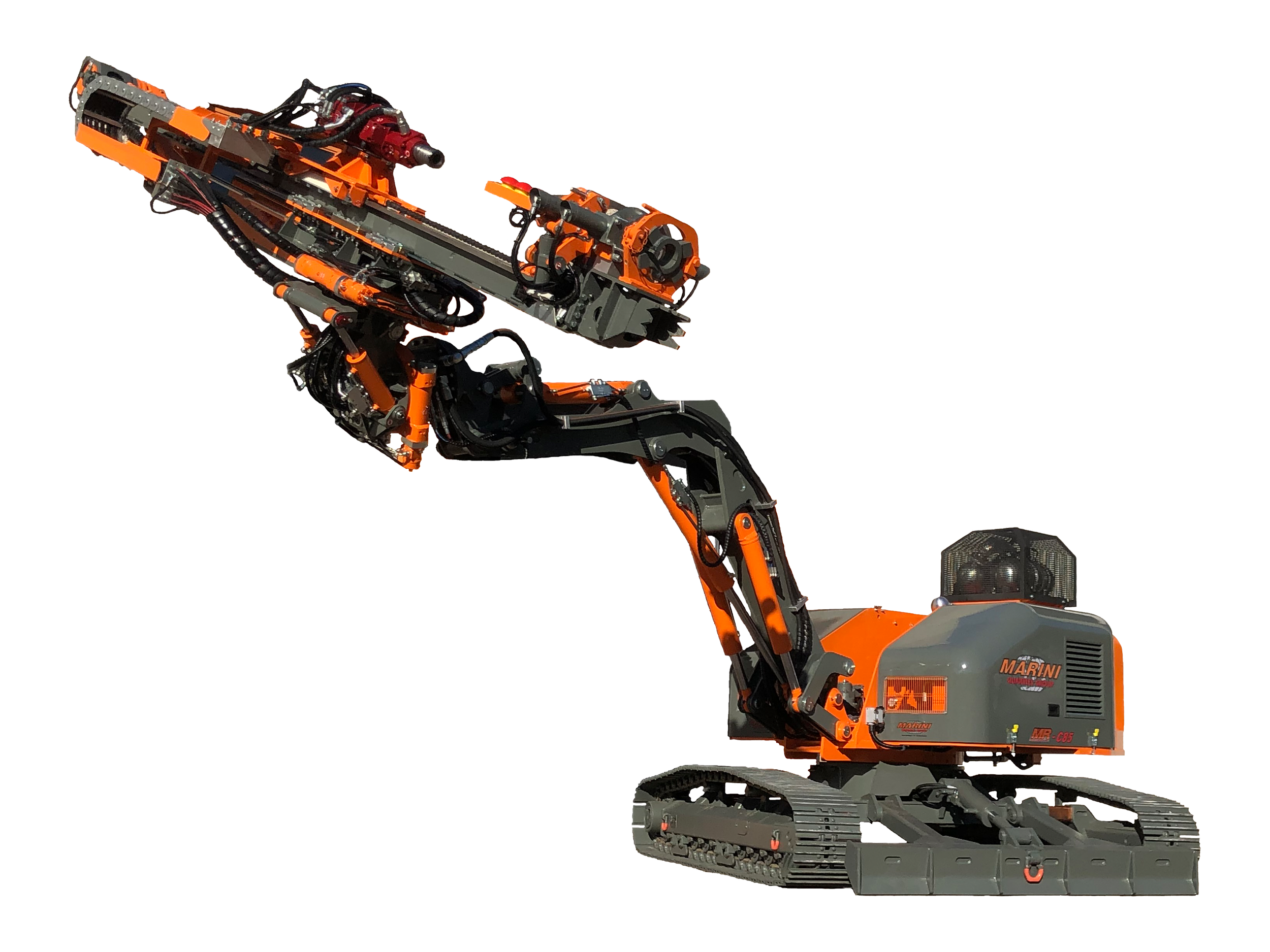

MR - C 85

The MR-C 85 radio-controlled hydraulic drilling rig, designed with double section arm, allows horizontal, vertical, inclined and vaulted holes to be made with extreme comfort. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 85 Kw

    Retract Force: 3500 daN

    Max Clamp Passage: 230 mm

    Weight: 10000 Kg

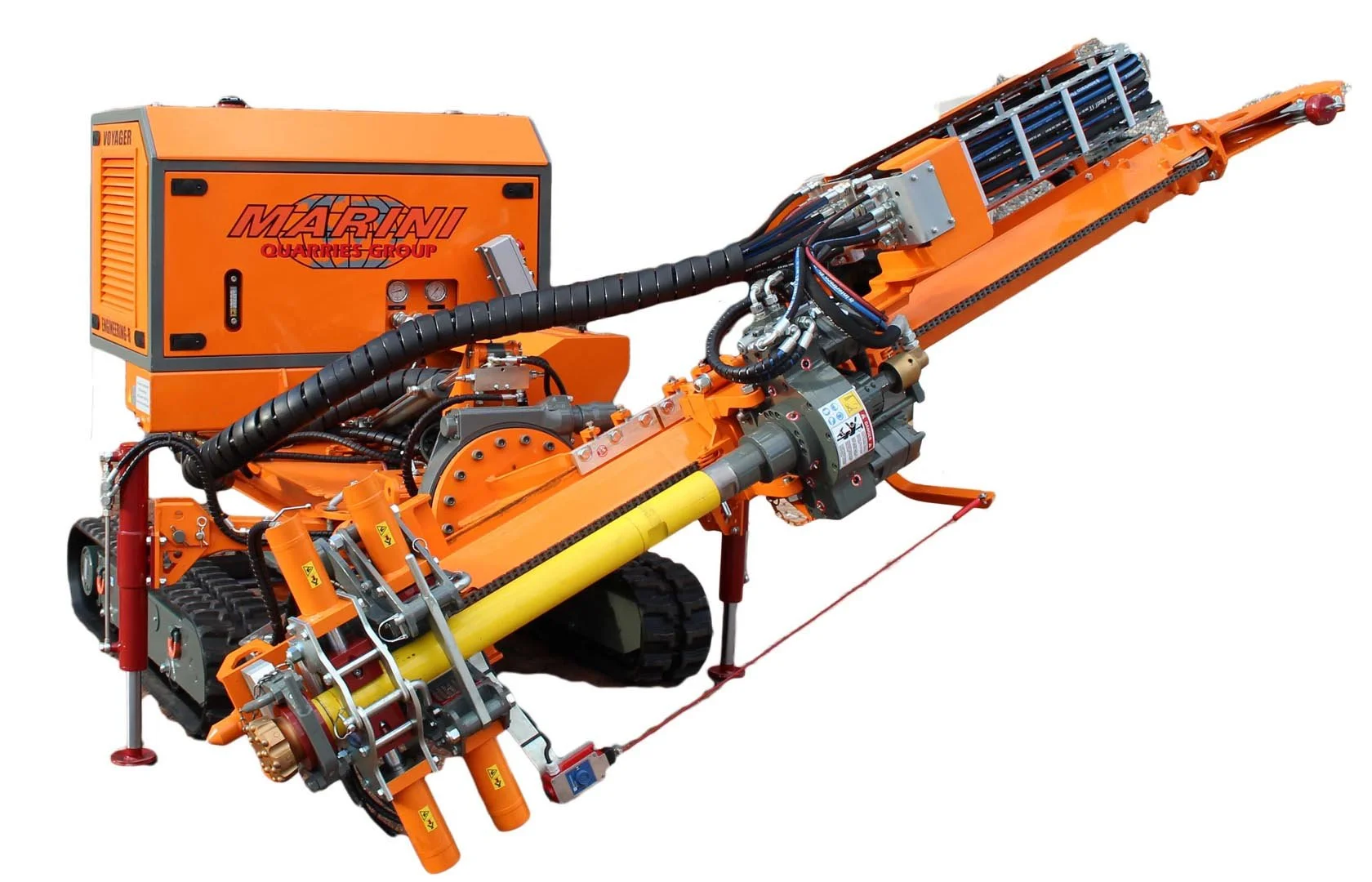

MR - C 20

The MR - C 20 hydraulic radio-controlled drilling rig is designed for horizontal, vertical or inclined holes. The self-propelled unit with rubber tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 22 kW

    Retract Force: 2500 daN

    Max Clamp Passage: 188 mm

    Weight: 2400 - 2700 kg

MR - C 35

The MR-C 35 radio-controlled hydraulic drilling rig, designed with single section arm, allows horizontal, vertical or inclined holes to be drilled in any direction. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 41 - 55 Kw

    Retract Force: 5000 daN

    Max Clamp Passage: 230 mm

    Weight: 6000 Kg

MR - C 70

Hydraulic crawler drill rig in construction!

  • Coming soon!

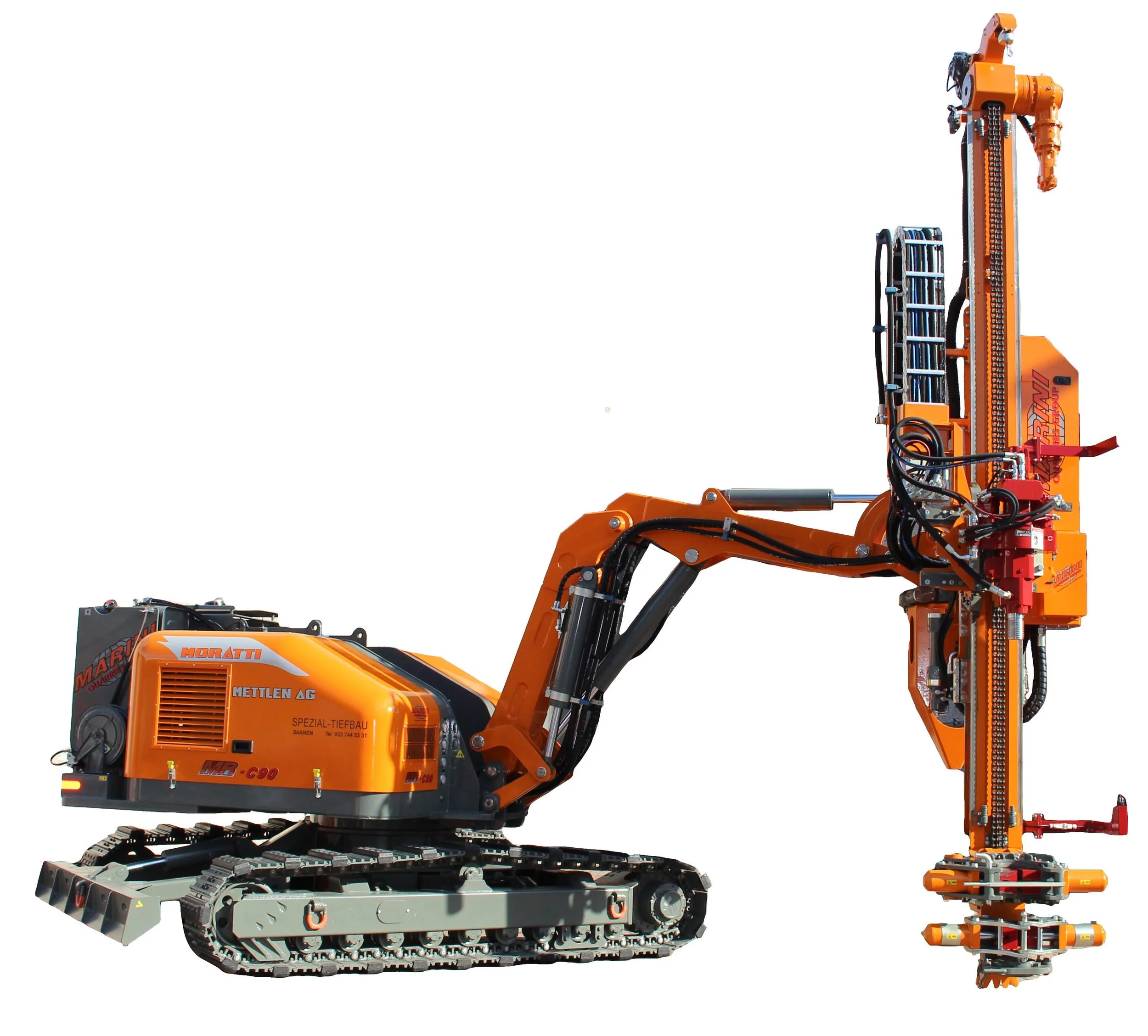

MR - C 90

The MR-C 90 radio-controlled hydraulic drilling rig, designed with double section arm, allows horizontal, vertical, inclined and vaulted holes to be made with extreme comfort and considerable power. The self-propelled unit with steel tracks can be equipped with rotary head or separate roto-percussion drifter.

  • Engine Power: 115 Kw

    Retract Force: 6000 daN

    Max Clamp Passage: 310 mm

    Weight: 15000 Kg

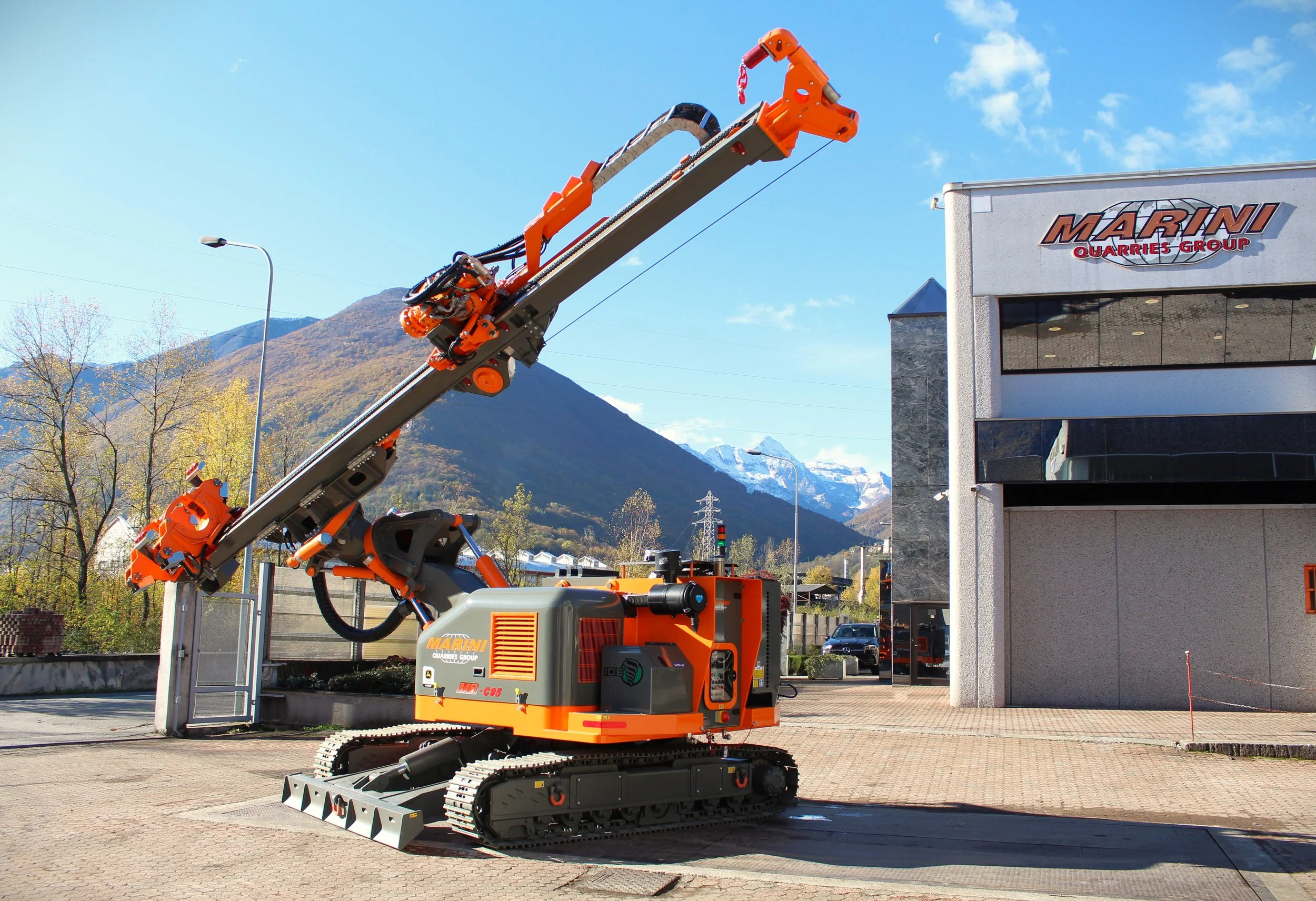

MR - C 95

The MR - C 95 radio-controlled drill rig, designed with single section arm and double turn table system allow the maximum flexibility and versatility for vertical, horizontal and inclined drilling operations such as micropiles, tiebacks, anchors and hollow bars installation. The self-propelled unit with steel tracks can be equipped with rotary head or separated roto-percussion drifter.

  • Engine Power: 104 / 128 Kw

    Retract force: 8000 daN

    Max Clamp Passage: 520 mm

    Weight: 22000 Kg
